Stack in C

A stack is a linear dynamic data structure that follows Last-In/First-Out (LIFO) principle. In a stack, addition of a new element and deletion of an element occurs at the same end which implies that the element which is added last in the stack will be the first to be removed from the stack.

Features of stack

It is a dynamic data structure.
It has dynamic size.
It uses dynamic memory allocation.

Operations of a stack

isEmpty(): Checks whether the stack is empty or not.
size(): Returns the size of the stack.
topElement(): Returns the top element of the stack.

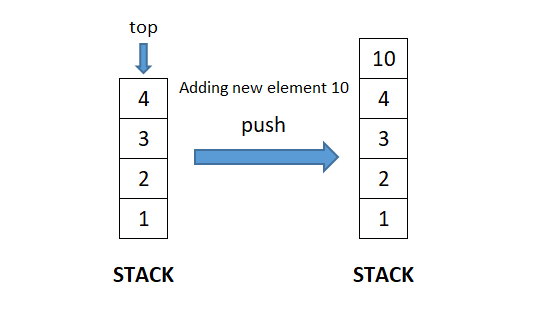

push(x): Adds a new element ‘x’ at the top of the stack. Consequently, size of the stack increases by 1.

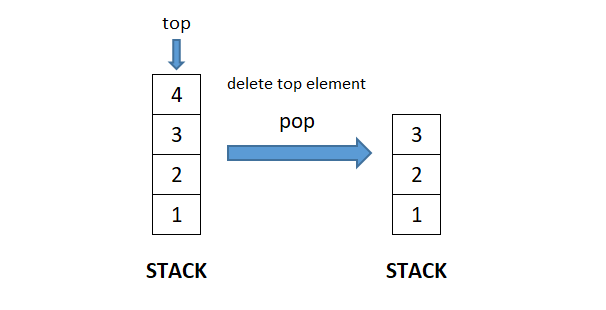

pop(): Deletes the top element of the stack. Consequently, size of the stack decreases by 1.

Implementation of Stack

#include <stdio.h>

#define MAX 100

//define structure of a stack
struct stack {
  int array[MAX];
  int top;
};

typedef struct stack stk;

void CreateStack(stk *s) {
  s->top = -1;
}

// create a function to check whether
// the stack is empty or not
void isEmpty(stk *s) {
  if(s->top == -1) {
    printf("Stack is empty.\n");
  } else {
    printf("Stack is not empty.\n");
  }
}

//create a function to return size of the stack
int size(stk *s) {
   return s->top+1;
}

//create a function to add new element
void push(stk *s, int x){
  if(s->top == (MAX - 1)){
    printf("Stack size limit reached.\n");
  } else {
    s->array[++s->top] = x;
    printf("%i is added into the stack.\n", x);
  }
}

//create a function to delete top element
void pop(stk *s){
  if(s->top < 0){
    printf("Stack is empty.\n");
  } else {
    int x = s->array[s->top--];
    printf("%i is deleted from the stack.\n", x);
  }
}

//create a function to get top element
int topElement(stk *s) {
  if(s->top < 0) {
    printf("Stack is empty.\n");
    return 0;
  } else {
    return s->array[s->top];
  }
}


// test the code
int main() {
  stk s;
  stk *MyStack;
  MyStack = &s;
  CreateStack(MyStack);
  push(MyStack, 10);
  push(MyStack, 20);
  push(MyStack, 30);
  push(MyStack, 40);

  pop(MyStack);
  isEmpty(MyStack);
  return 0;
}

The above code will give the following output:

10 is added into the stack.
20 is added into the stack.
30 is added into the stack.
40 is added into the stack.
40 is deleted from the stack.
Stack is not empty.
