The Shell sort is based on the idea that farther elements are sorted first and successively decrease the interval between the elements to be sorted. It is a generalized version of insertion sort. In shell sort, elements at specific interval are sorted first and the interval is gradually decreased until it becomes one. There are many ways to choose interval for shell sort and few of them are listed below. Please note that the performance of shell sort depends upon type of sequence chosen.

- Shell’s original sequence: N/2, N/4, …, 1
- Knuth’s sequence: 1, 4, 13, …, (3n – 1) / 2
- Sedgewick’s sequence: 1, 8, 23, 77, 281...
- Hibbard’s sequence: 1, 3, 7, 15, 31, 63…

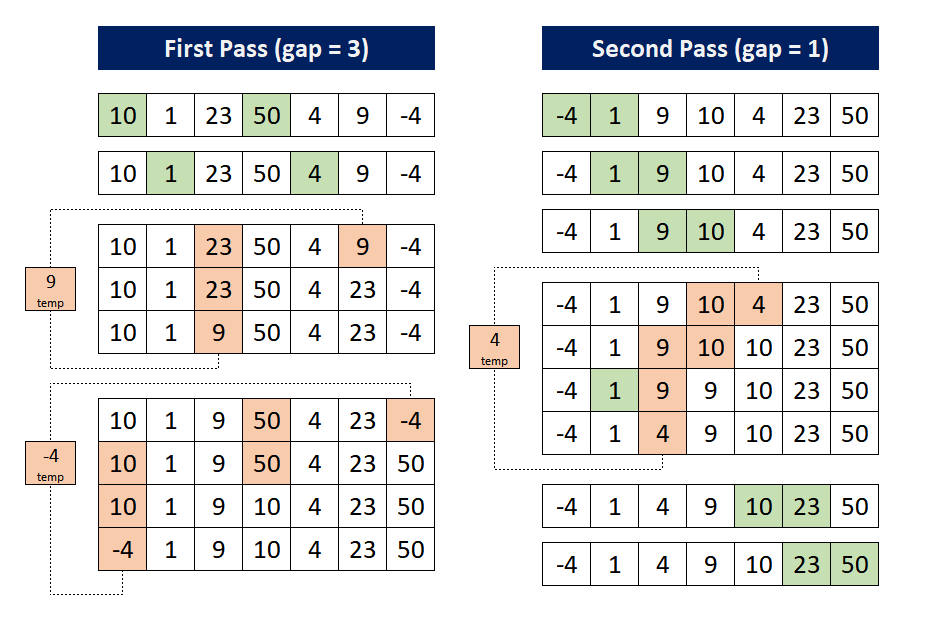

To understand the Shell sort, lets consider an unsorted array $$[10, 1, 23, 50, 4, 9, -4]$$ and discuss each step taken to sort the array in ascending order. In this example, Shell's original sequence is considered hence the intervals (gaps) will be three and one $$(N=7)$$.

** First Pass:** For this pass, the gap size is three. Hence, the first element $$(10)$$ is compared with fourth element $$(50)$$ and found in the correct order. Then the second element $$(1)$$ is compared with fifth element $$(4)$$ which are also in the correct order. Then, the third element $$(23)$$ is compared with the sixth element $$(9)$$, since $$(23 > 9)$$, the sixth element is replaced by $$(23)$$ and $$(9)$$ is stored in a

After that, the fourth element $$(50)$$ is compared with the seventh element $$(-4)$$, since $$(50 > -4)$$, the seventh element is replaced by $$(50)$$ and $$(-4)$$ is stored in a *temp* variable. As, fourth - gap = 1, hence, the *temp* is again compared with first element $$(10)$$. since $$(10 > -4)$$, the fourth element is replaced by $$(10)$$ and first element is replaced by *temp* (there is no element which can be compared with *temp*).

** Second Pass:** For this pass gap size is one. First four elements are already sorted. After that, the fourth element $$(10)$$ is compared with the fifth element $$(4)$$, since $$(10 > 4)$$, the fifth element is replaced by $$(10)$$ and $$(4)$$ is stored in a

Example

<?php // function for shell sort function shellsort(&$Array, $n) { $gap = $n/2; $gap = (int)$gap; while($gap > 0) { for($i = $gap; $i < $n; $i++) { $temp = $Array[$i]; $j = $i; while($j >= $gap && $Array[$j-$gap] > $temp) { $Array[$j] = $Array[$j-$gap]; $j = $j - $gap; } $Array[$j] = $temp; } $gap = $gap / 2; $gap = (int)$gap; } } // function to print array function PrintArray($Array, $n) { for ($i = 0; $i < $n; $i++) echo $Array[$i]." "; } // test shell sort code $MyArray = array(10, 1, 23, 50, 4, 9, -4); $n = sizeof($MyArray); echo "Original Array\n"; PrintArray($MyArray, $n); shellsort($MyArray, $n); echo "\nSorted Array\n"; PrintArray($MyArray, $n); ?>

Output

Original Array 10 1 23 50 4 9 -4 Sorted Array -4 1 4 9 10 23 50

In above implementation, the time complexity of shell sort in worst case scenario is $$\mathcal{O}(N^2)$$ and the time complexity in best and average case scenarios are $$\mathcal{O}(NLogN)$$. There are various methods to consider gap which lead to better time complexity.
